Manipulators
HLK-5600

5-Function HD Manipulator

View Data Sheet
Back to all products

Features

  • 5 degrees of freedom manipulator
  • Compact & lightweight @ 17kg (37lb) in water
  • Lift of 40Kg at full reach
  • Continuous wrist rotate and a jaw opening of 154mm (6")
  • Incorporates a 19mm soft rope cutter

Product Overview

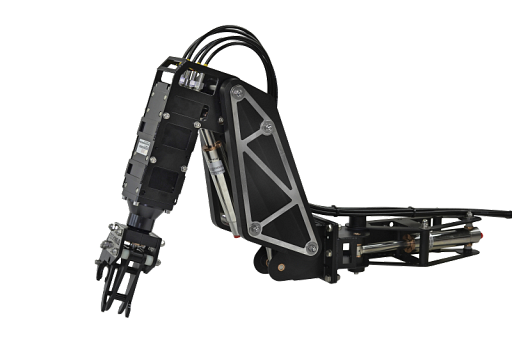

The HLK-5600 manipulator is a 5 Function rate controlled manipulator making use of an HLK-25000 jaw rotate offering continuous rotation on the wrist and a jaw opening range of 154mm (6") and a softline cutting capability of 19mm (3/4”) from the back side of the jaw plates.

This manipulator was specifically developed for use on observation to light duty work class vehicles to provide manipulation capabilities and is ideal for applications such as jetting and brushing operations, debris clearance, valve turning and bolt torqueing, rope cutting, cable repair, biological and geological sampling, archaeological work, transponder and probe installation, salvage and recovery.

General Specifications

Degrees of Freedom
5
Control Type
Rate Controlled
Materials
316 SS, 6082 Alum., HDPE
Seal Materials
Nitrile/NBR/Buna-N, PTFE
Product Finish
Hard Anodised, Painted
Ports
1/8" BSPP (ISO 1179)
Dimensions
Refer to Drawing
Weight in Air
21kg (46lb)
Weight in Water
17kg (37lb)
Maximum Reach
987mm (38.9")
Wrist Travel
Continuous
Jaw Opening
154mm (6")
