Features
- Designed for inspection of pipelines up to 1mtr in diameter
- Camera position stable throughout 120o angular movement of arm
- Camera mount can be tilted through120o and rotated through 360o
- Uses HLK-2150 pan & tilt unit
Product Overview

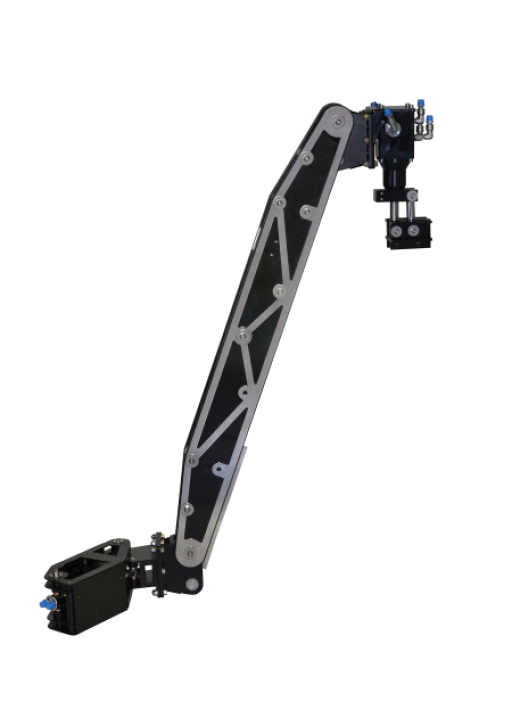

The HLK-4600PT is a 4 function arm designed for inspection of pipelines up to 1m and can be fitted with customer specified cameras and lighting for deployment on an medium to large sized work class ROV’s
General Specifications
Materials
316 Stainless Steel, 6082 Aluminium, HDPE
Product Finish
Hard Anodised, Painted
Ports
1/8" BSPP (ISO 1179), 7/16” SAE (SAE J1926-1)
Dimensions
Refer to Drawing
Weight in Air
31.6kg (69.5lb)
Weight in Water
19.6kg (43lb)
Maximum Reach
1300mm (51")
