Manipulators

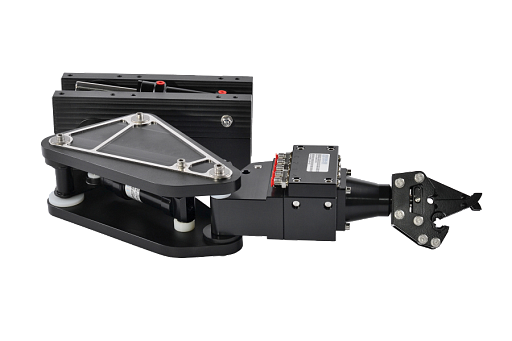

HLK-43000

5-Function Manipulator

View Data Sheet
Back to all products

Features

  • 5 degrees of freedom manipulator
  • Compact & lightweight @ 4.2kg (9.24lb)
  • Lift of 10Kg at full reach
  • Wrist rotate range of 180 deg and a jaw opening of 90mm (3.5")
  • Incorporates a 6mm (1/4") soft rope cutter

Product Overview

The HLK-43000 manipulator is a 5 Function rate controlled manipulator making use of an HLK-21020 jaw rotate offering 180 degree rotation on the wrist and a jaw opening range of 90mm (3.5") and a softline cutting capability of 6mm (1/4”) from the back side of the jaw plates.

This manipulator was specifically developed for use on observation class vehicles to provide manipulation capabilities and is ideal for applications such as debris clearance, rope cutting, biological and geological sampling, archaeological work, salvage and recovery.

General Specifications

Degrees of Freedom
5
Control Type
Rate Controlled
Materials
316 Stainless Steel, 6082 Aluminium, HDPE
Seal Materials
Nitrile/NBR/Buna-N, PTFE
Product Finish
Hard Anodised, Painted
Ports
1/8” BSPP (ISO 1179), M8x1
Dimensions
Refer to Drawing
Weight in Air
8.4kg (18.5lb)
Weight in Water
4.2kg (9.24lb)
Maximum Reach
660mm (26”)
Wrist Travel
180 Degrees
Jaw Opening
90mm (3.5”)
