Features
- Hard anodized motor body for corrosion resistance
- Utilises standard Hydro-Lek whip for commonality with SAAB Seaeye vehicle platforms
- Water jetting performances of 12lpm @ 150bar
Product Overview

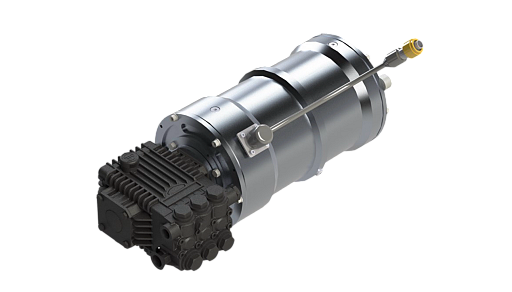

The HLK-31090 Water Jet has been developed to assist in cleaning tasks needed on many sub-sea structures before intervention. Driven by a 3-phase motor, the pump can deliver 12 litres per minute at 150 bar though an orbital nozzle. The nozzle can be deployed by a manipulator or fixed on the ROV and directed by the ROV itself. The Water Jet system can also be fitted to a dedicated skid with tilt control.
General Specifications
Pump Type
Triplex Plunger
Motor Type
3 Phase AC Induction
Materials
6082 Aluminium, Bronze
Seal Materials
Nitrile/NBR/Buna-N, PTFE
Product Finish
Hard Anodised
Work Ports
Outlet = 3/8" BSPP (ISO 1179) Inlet = 1/2" BSPP (ISO 1179)
Compensation Ports
1/8" & 1/4" BSPP (ISO 1179)
Dimensions
(L) 482mm x (W) 220mm x (D) 190mm (19" x 8.7" x 7.5")
Weight in Air
34.2kg (75.4lb)
Weight in Water
26kg (57lb)
Electrical Connector Type & Pin
M2PL4M with 1.5mtr Whip
