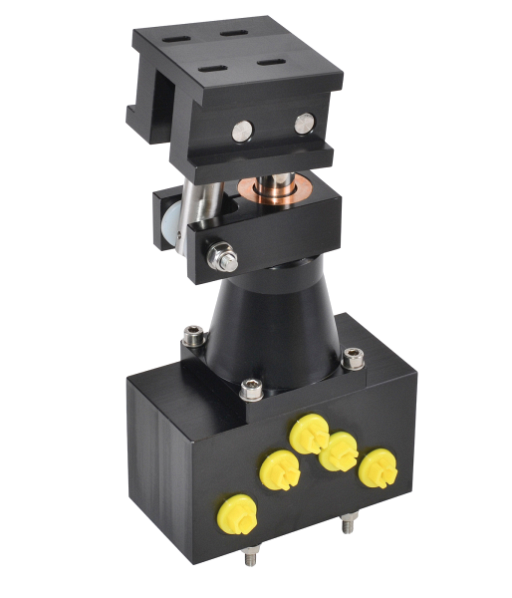

The HLK-21000 is a light duty hydraulic pan & tilt platform designed to work reliably on all types of submersible systems. It is ideally suited for the positioning of cameras, lights or survey equipment and can be installed to the end of camera booms for pipe inspection activities.
All hydraulic connections are ported into the rear of the body and are available in 1/8" BSPP in accordance with ISO 1179 and 7/16" SAE in accordance with SAE J1926-1.
In addition to the HLK-21000 pan & tilt unit, it can be paired with the HLK-6000 double pilot operated check valve to ensure accurate position holding of the tilt function.
The rotate function is a rack and pinion design while the tilt function is a double acting actuator. The body and bracket are manufactured of 6082 aluminium with a 50 micron hard anodized surface.
