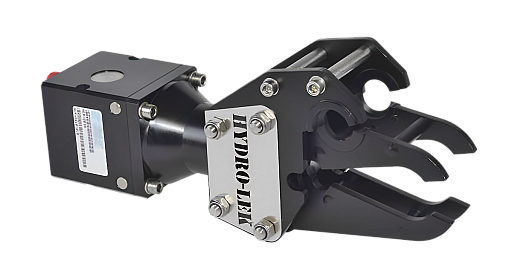

The HLK-2010 is a light duty jaw rotate unit designed specifically for the EH5 manipulator, but can be retrofitted for any application requiring a jaw rotate function.
All hydraulic connections are ported into the rear of the body and are available in 1/8" NPTF in accordance with ANSI 81.20.3.
The rotate is a rack and pinion design while the jaw function is a double acting actuator. The body and bracket are manufactured of 6082 aluminium with a 50 micron hard anodized surface.
